Water well drilling rig exploratory drilling rig HZ-130Y

Product Categories

Chongqing Gold Mechanical & Equipment Co., Ltd

Contact Now

Name: Water well drilling rig exploratory drilling rig HZ130Y
Brand: GOLD
Price: 1 USD

Place of Origin : Chongqing

Brand Name : GOLD

Model Number : XY-130Y

Certification : CE

Packaging Details : Plastic sheeting or wooden case for drilling rig

Delivery Time : 10 days

Payment Terms : T/T, West union, L/C

Supply Ability : 100 sets per month

MOQ : 1 set

Price : EXW USD5000/set

Drilling depth : 130 m

Maximum open hole caliber : 260 mm

Warranty : 12 months

Contact Now

Vivienne

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803

Fax:+86-23-62940030 Skype:viviennecq

HZ-130Y small drilling rig shallow water well drilling tig

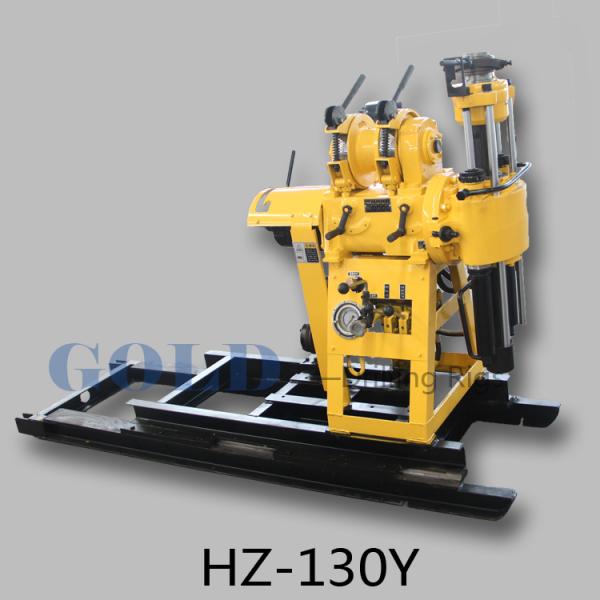

Water well drilling rig exploratory drilling rig HZ-130Y

Specifications
Unity machine parameter
Drilling depth		130m
Maximum open hole caliber		260mm
End hole caliber		75mm
Drill rod caliber		50mm
Drilling angle		90~75
Drill weight (No include power)		510 560kg
Unity machine dimensions		2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed		142,285,570r/min
Spindle stroke		450mm
Hoist
Max.single line hoisting capacity		960kg
Single line lifting speed		0.41,0.82,1.64m/s
Tightrope caliber		27m
Mud pump
Type	Horizontal single urn twin-action
Displacement	95/77L/min
Diesle engine	S1105model 18HP
Electric motor	Y160M—4 11kw 1440r/min
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa
Water inlet caliber	30mm
Water to exit caliber	25mm
Triangle conveyer belt	B1575mm
